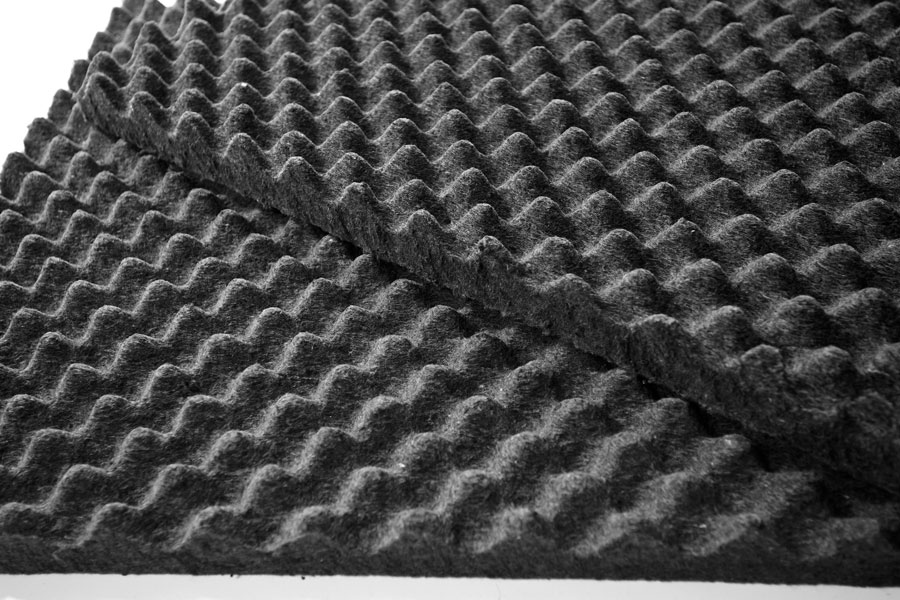

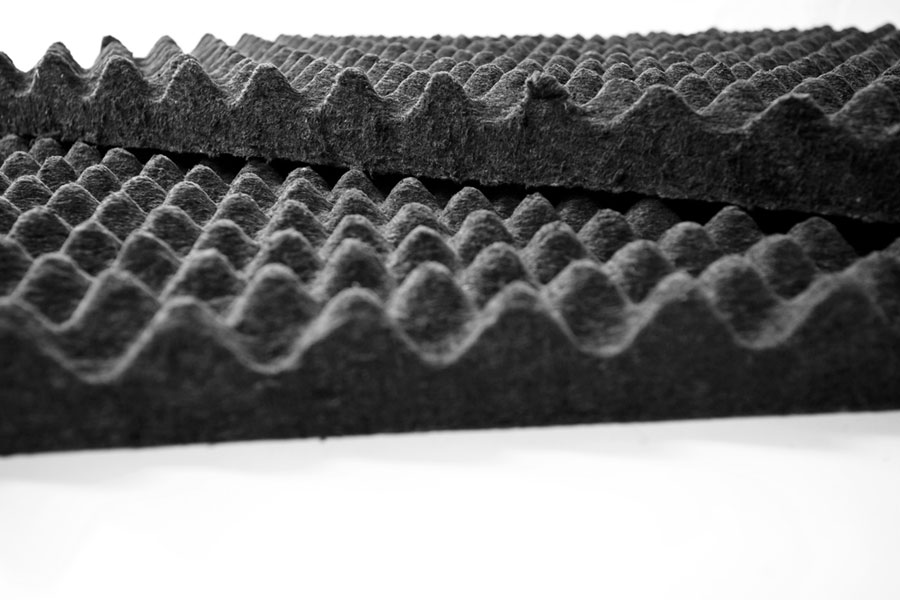

Echo Eliminator™ Cotton Soundwave Eggcrate Acoustical Panel

ASI is proud to introduce the market’s first recycled cotton, high acoustical performance studio wall panel. The Soundwave panel is made from 85% recycled cotton and is 100% recyclable.

Recycled Cotton (Green Acoustical Material)
Class A – Non-Flammable (Per ASTM E-84)
Lightweight
Easy to Install (adhesively applied)
Impact Resistant
Durable
Low Cost
Fiberglass Free
No Formaldehyde – No VOC’S
Hi-Performance Acoustical Absorption
Proudly Made in the USA
LEED™ Eligible (more information)

Product Testing & Information

Product Specs

Applications	Recycled Cotton Soundwave panels are ideally suited for studios, school gymnasiums, cafeterias, classrooms, churches, multi-purpose rooms, community centers and more.
Size	2′ X 4′
Thickness	2″
Color	Graphite

Please note: Since these panels have a male/female pattern (convolute), each panel is slightly different on it’s edge pattern. Panels will not line up to make one large uniform pattern.

Although we take extensive precautions and purge the lines between colors, due to the manufacturing process color inconsistencies – including dye lot variations – flecks, specks, and other slight surface blemishes are unavoidable. Please call for details.

All sizes are nominal and are subject to manufacturing tolerances that may vary ± 1/8″. Exact fitting may require on site adjustment by the purchaser. Exact size and other unavoidable variables such as dye lot color variances, lighting conditions, pattern matching,directional materials, expansion and contraction due to environmental conditions. Project with exacted visual requirements and expectation must be identified for our special attention prior to ordering.

Reverberation Demonstration

Echo Eliminator™ Soundwave Panel – Sound Absorption Coefficients
	Mount	125Hz	250Hz	500Hz	1KHz	2KHz	4KHz	NRC
2″ – 3lb./cf.	A	.35	.94	1.32	1.22	1.06	1.03	1.15
